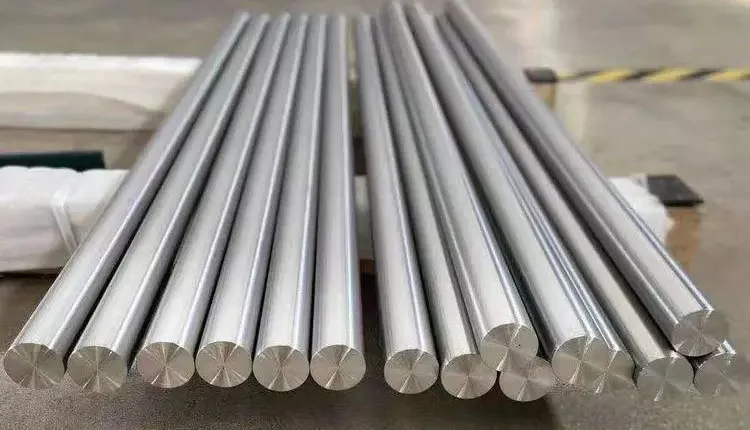

Inconel 617 Round Bar

Specifications	ASTM B166 / ASTM SB166
Dimensions	EN, DIN, JIS, ASTM, BS, ASME, AISI
Diameter	5 mm to 300 mm
Length	100 mm to 6000 mm Long & Above
Finish	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Form	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

Inquiry Online

Email To Us

Welcome to leave us a message

Description

Alloy 617/ Inconel 617 (UNS N06617) is a nickel-chromium-cobalt-molybdenum alloy with an exceptional combination of high-temperature strength and oxidation resistance. The high nickel and chromium contents make the alloy 617 resistant to a variety of both reducing and oxidising environments, while the aluminium with the chromium provides oxidation resistance at high temperatures. Those elements with the molybdenum enable the alloy to withstand many wet corrosive environments.

Equivalent Grades Of Inconel 617 Round Bar

STANDARD	UNS	WNR.
Alloy 617	N06617	2.4663

Chemical Composition Of Inconel 617 Round Bar

0.05-0.15

1.0 Max

0.015 Max

1.0 Max

20.0-24.0

8.0-10.0

44.5 Min

0.5 Max

0.6 Max

0.8-1.5

0.006 Max

10.0-15.0

3.0 Max

Mechanical Properties Of Inconel 617 Round Bar

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30 %
